Stepper motor drive

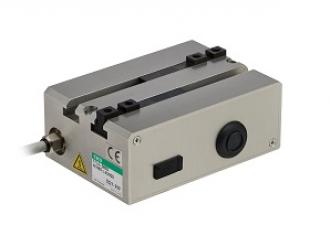

Electric Actuator Gripper 2-Finger type
- Model No.
- FFLD
NEW
【NEW】Add 500N Type
This is a long stroke and thin type of electric gripper that best fits the robot's tip.
Optional grip position allows you to grip a wide variety of workpieces without changing tools.
It's also a slim robot hand.
Built-in controller for cable-saving and wire breaking.
strokes:100mm (one-sided 50mm), 140mm (one-sided 70mm), 160 (one-sided 80)
Maximum gripping force: 500N (one side)
Mass: 1.2~2.5kg
- Industry
- Assembly
- Handling
- Inspection
- Documents / Download
Digital Catalog
PDF Catalog
User's Manual
Software
2D CAD
3D CAD
CKD plus Members Only
[Long Stroke & High Stiffness]
The longest strokes in the industry to handle multi-line work.
Reduces time to adjust without changing tools and reduces tool costs.
[Miniaturizing the robot itself]
It contributes to the miniaturization of the robot by reducing the axial load and moment of inertia with the thinnest size in the industry.
[Space-Saving Wiring]
Power and control cabling in the IO-Link specification is completed with one cable.
The controller is built in the actuator and can save the space of the control panel.
It is suitable for mounting on a robot or an orthogonal actuator tip.
| Model No. | Product name | Max. gripping force | Stroke | Remarks |
|---|---|---|---|---|
| FFLD-0850NCN30-LKS | Gripper 2-Finger type | 80N (one side) | 100mm (one side : 50mm) | |
| FFLD-3070NCN30-LKS | Gripper 2-Finger type | 300N (one side) | 140mm (one side : 70mm) | |
| FFLD-5080NCN30-LKS | 2-Finger Gripper | 500N (one side) | 160mm (one side：80mm) |
