Attachment Examples

The tip of the Flex Arm is equipped with a suspension hook as standard.
By attaching various attachments to the suspension hook, it can handle a diverse range of workpieces.
We will introduce some representative examples of attachments, although this is only a small fraction.
Consultation is also available for attachments not listed. Please feel free to inquire.

Types of Attachments

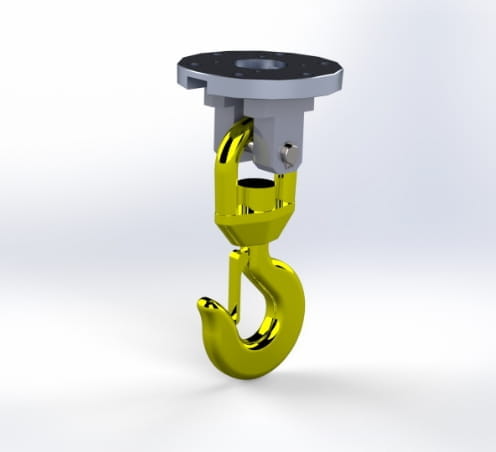

• Suspension Hook
  (Standard)

  By mounting various attachments to the suspension hook, it can handle a diverse range of workpieces.



  Video

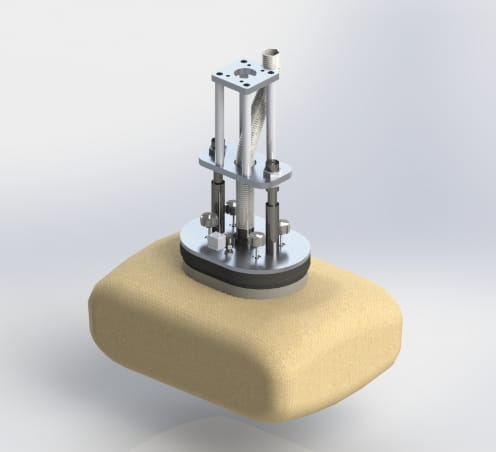

• For Bag Suction

  Ideal for suction transport of bags up to 30 kg, such as material bags.
  *The maximum load varies depending on the condition of the workpiece. Please confirm in advance.



  Video

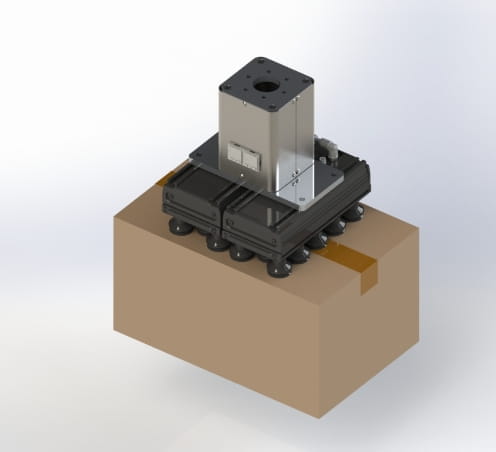

• For Cardboard Suction

  Ideal for suction transport of cardboard boxes up to 30 kg.
  *The maximum load varies depending on the condition of the workpiece. Please confirm in advance.



  Video

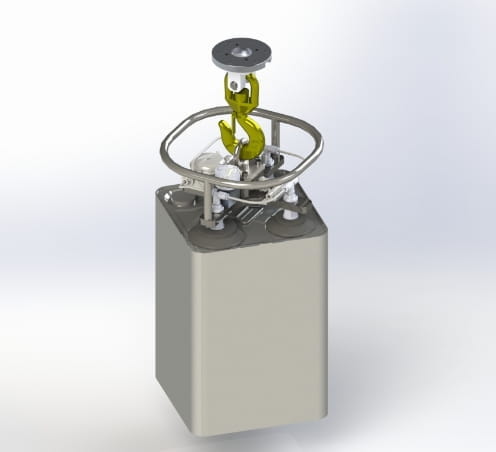

• For 18-Liter Can Suction

  Ideal for suction transport of 18-liter cans and other items up to 25 kg.

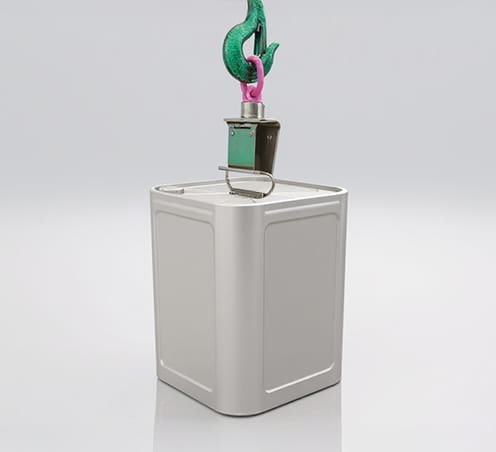

• Hook for 18-Liter Cans

  Ideal for transporting 18-liter cans and other items up to 25 kg with a hook.



  Video

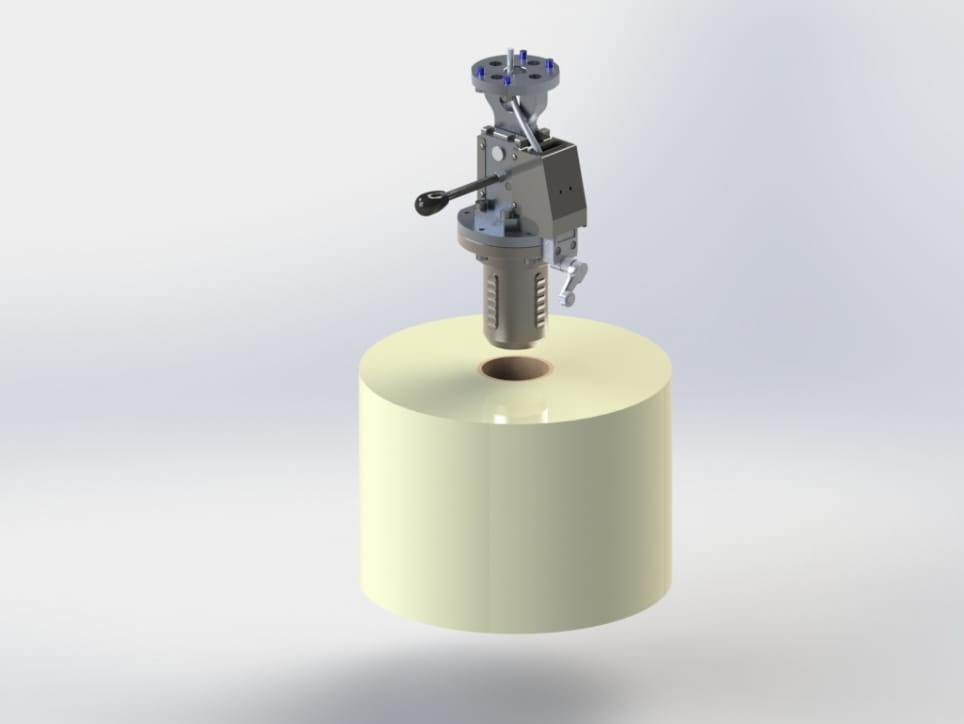

• For Clamping Roll Inner Diameters

  Ideal for transporting roll-shaped workpieces such as packaging material.
  It is inserted into the roll hole, clamped, and transported.

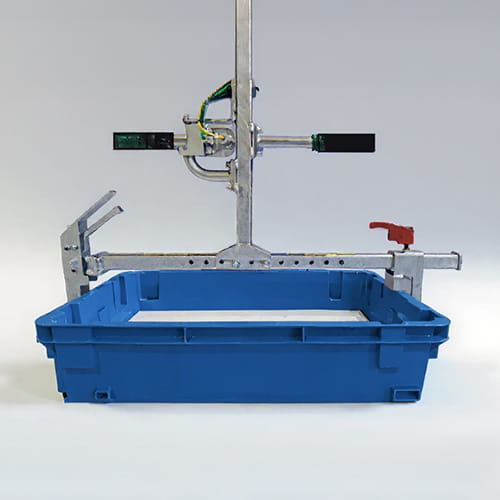

• Clamp for Containers

  Ideal for transporting thin transport containers such as "banjyu" food containers.



  Video

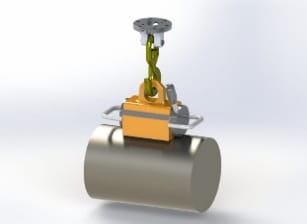

• Magnet Suction

  By attaching a magnet to the end of the hook, you can pick up and transfer iron workpieces.
  It can also attract circular iron parts.



  Video

*Since specifications are determined according to customer requests, the maximum transport weight, appearance, etc., are subject to change.
